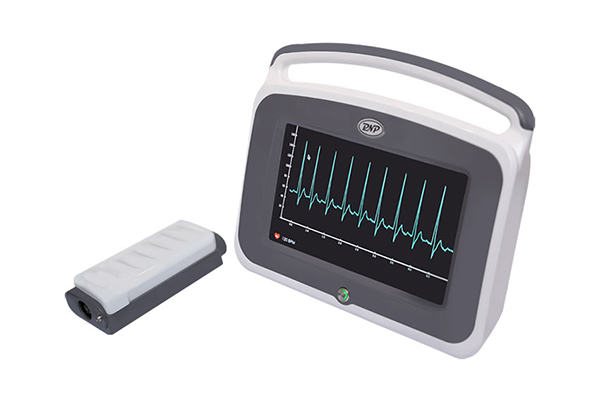

Wireless ECG Trigger

Home
Products
Wireless ECG Trigger

The ECG Trigger or R-wave detector is an instrument that detects the bioelectric signal resulting from activation of the heart's ventricles.

Such detectors are used in intensive-care wards to monitor heartbeats of patients and to alert the medical staff to abnormal rhythms. Another application is synchronizing heart-assist pumps to the rhythm of the natural heart.

This is an add-on module to the ECG Amplifier. The instrument was developed to improve the performance of heartbeat monitoring Equipment and for synchronization of heart-assist pumps. It is used for triggering (starting) a stimulator or some other equipment from the R-wave of an ECG signal.

Designed for use in conjunction with imaging systems in gated cardiac studies, theAccuSync 42ECG triggering device automatically detects the R Wave with precision and reliability.

Features

Wireless ECG Trigger
Automatic R Wave Detection
Digital ECG waveform output
Synchronized ECG trigger output
3 Selectable ECG Leads
Controllable ECG Output
Trigger Pulse LED
Patient Isolation
External ECG Interface
Universal Voltage
Easy to Handle
Patient Comfort

Specifications:

Output:

Synchronized output BNC (for trigger pulse output)
Pulse polarity: Negative or positive
Configuration: 3-Lead System
Band width: 0.1-1 kHz
CMRR ≥ 73dB
Input bias current: 150µA
Notch Filter: 50Hz
Accuracy: ±1 bpm ± 1%
HR averaging: Last 10 beats
Resolution: 1bpm
Trigger Delay < 1ms
R to R accuracy: 100 µs
Pulse Width: 1-200 ms (Adjustable)
Pulse Amplitude: 0-3V
Source Current: 100mA
Sink Current: 150 mA
Heart Beat: 10-300bpm
Relative humidity: 10-60%
Storage temperature: 5-40 °C

Supply

Transmitter Module: Battery, 3V, 10ma
Receiver Module: Adaptor, 5V, 4A

Mechanical data:

Dimensions (W×H×D): 23×12×12 cm3
Weight: ˂ 3kg
Accessory: BNC output cable, ECG Cable, Type-C Cable, Operating Instructions
