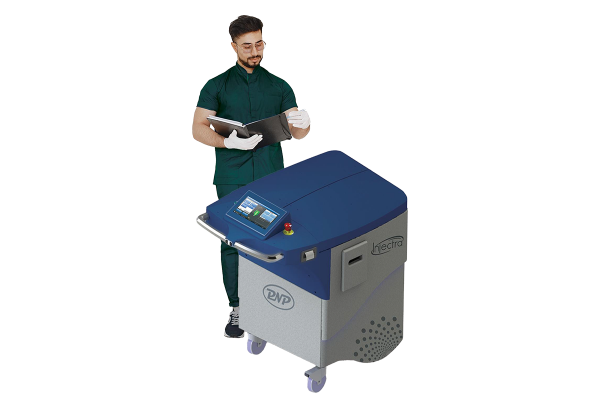

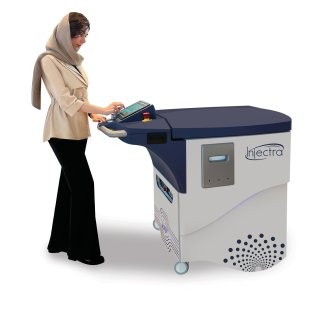

Auto Injector

Autoinjector for Radiopharmaceuticals

The PNP's Automatic Injector Answer to the Operator's Need for Radioprotection During the Radiopharmaceutical Injection Phase. This System Provides a Totally Automated Injection of Radioactivity, Minimizing any Operator Exposure to Radiations. No Need of Operator's Presence During Injection. The System Use Low Cost Consumables in order to Reduce the Injection Cost per Patient.

• Smart Injection System
• Automated Consumables Tracking
• Low Consumables Cost
• Easy and Safe Handling of Radioactive Vials
• High Level of Accuracy in Injection
• Fully Motorized Movement
• Predictive Maintenance
• Safe Shielding with Low Radiation Leakage
• Fully Automatic Injection Process
• Reliable Operation with Low Maintenance Cost
• Easy Connect with Service
• Adjustable for Injection of any Kind of Radiopharmaceuticals

Specifications:

• Dimensions(W*H*D): 130×75×115 cm3
• Weight: 500 kg
• Power Supply: 220VAC, 50/60Hz + Rechargeable Batteries, 12V, 40A
• Power Requirement: Max 500 Watts
• Battery Time: 8-hours working timeTray Capacity: 1 kit per day
• Maximum Bulk Vial Volume: 30 mL
• Maximum Bulk Activity Concentration: 150 mCi/mL
• Dose Range: 1-25mCi
• Dose Accuracy: ± 3%
• Volumetric Dose Dispensing precision: ± 1.0 %
• Flow Rate: 0.5 mL/Sec
• Maximum Radioactivity: 1 Ci (for shielding effectiveness)
• Bubble Elimination: Provided by bubble sensors
